DH Series

AET's DH Indoor Series LED displays boast exceptional clarity and color accuracy, Illuminating your interiors with unparalleled brilliance.

New Layer

DH Indoor

DH Outdoor

Key Features

Image Hotspot Pointers
Your Image

Features

Features

Great Flatness

Features

Fast Heat Dissipation

Features

QCOB Technology

Features

Supports multiple splicing

Features

Great Flatness

Features

Fast Heat Dissipation

Popup Image

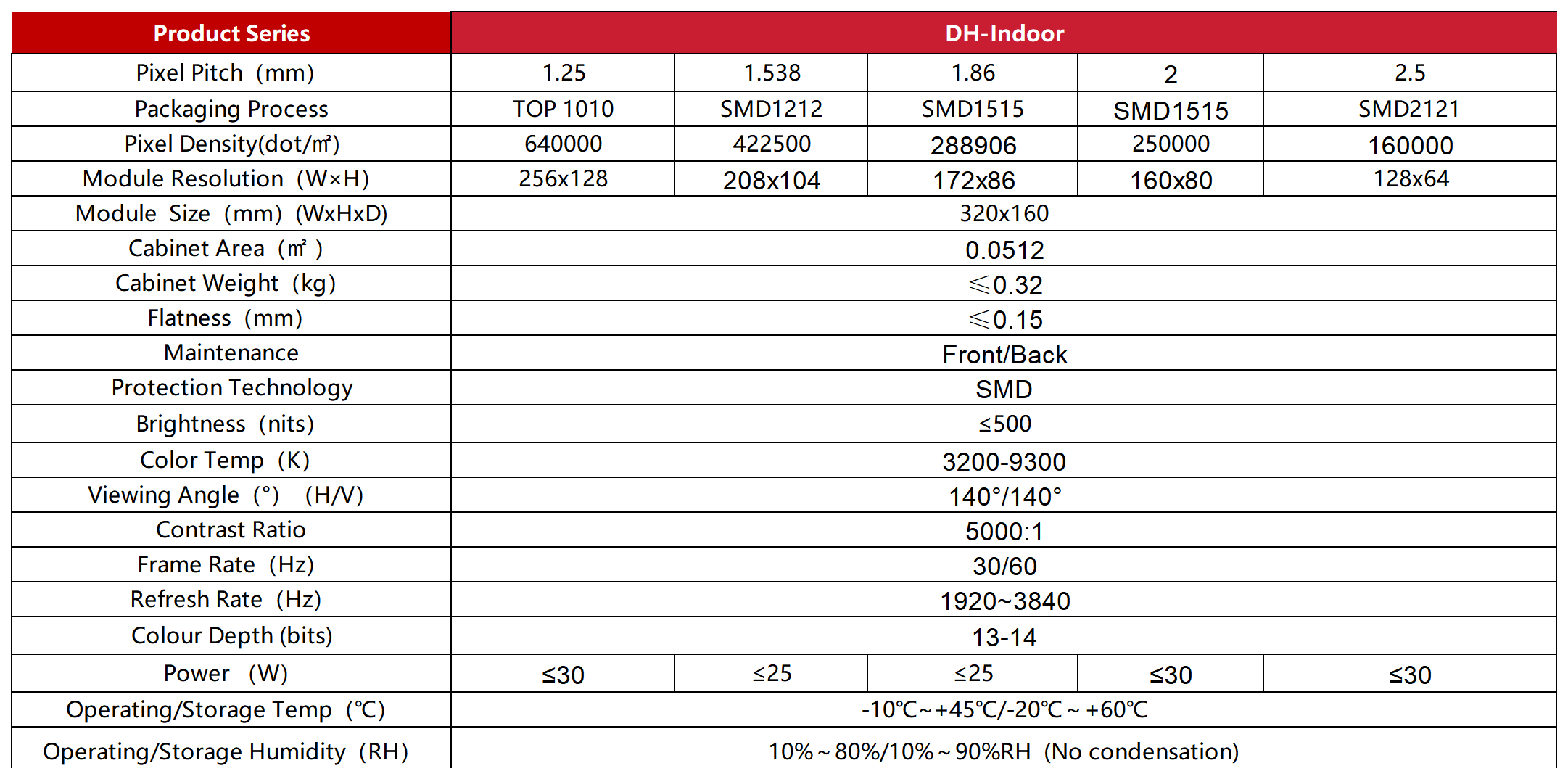

Specs

Module Parameter LED Type Non-NS LED 1010 NS Copper LED 1010 NS GOLD LED 1010
Pixel pitch 1.25 mm
Module Resolution (W×H Pixel) 256×128
Module Dimension (mm) 320 (W)×160 (H)×15 (D)
Module Flatness (mm) ≤0.15
Pixel/m2 640,000
Servicing Front
Back Shell Plastic
Cabinet Size (W×H) 640×480×50/640×640×55, Die-cast Aluminum
Cabinet Weight (KG/m2) ≤35 KGs (Die-cast Aluminum)
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 500-800
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 52
Electrical Parameter Max Power Consumption (W/m2) ≤650
Average Power Consumption (W/m2) ≤216
Input Power Voltage AC110-220V±15%, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive (common anode)
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – 60
Storage Temp (°C) -20 – 60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-90%
Encapsulation Technology QCOB Available


Module Parameter LED Type Non-NS LED 1010 NS Copper LED 1010 NS GOLD LED 1010
Pixel pitch 1.538 mm
Module Resolution (W×H Pixel) 208×104
Module Dimension (mm) 320 (W)×160 (H)×15 (D)
Module Flatness (mm) ≤0.15
Pixel/m2 422,500
Servicing Front
Back Shell Plastic
Cabinet Size (W×H) 640×480×50/640×640×55, Die-cast Aluminum
Cabinet Weight (KG/m2) ≤35 KGs (Die-cast Aluminum)
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 500-800
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 52
Electrical Parameter Max Power Consumption (W/m2) ≤650
Average Power Consumption (W/m2) ≤216
Input Power Voltage AC110-220V± 15%, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive (common anode)
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – 60
Storage Temp (°C) -20 – 60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-90%
Encapsulation Technology QCOB Available


Module Parameter LED Type Non-NS LED 1515 NS Copper LED 1515 NS GOLD LED 1515
Pixel pitch 1.86 mm
Module Resolution (W×H Pixel) 172×86
Module Dimension (mm) 320 (W)×160 (H)×15 (D)
Module Flatness (mm) ≤0.15
Pixel/m2 288,906
Servicing Front
Back Shell Plastic
Cabinet Size (W×H) 640×480×50/640×640×55, Die-cast Aluminum
Cabinet Weight (KG/m2) ≤35 KGs (Die-cast Aluminum)
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 500-800
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 43
Electrical Parameter Max Power Consumption (W/m2) ≤650
Average Power Consumption (W/m2) ≤216
Input Power Voltage AC110-220V± 15%, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive (common anode)
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – 60
Storage Temp (°C) -20 – 60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-90%
Encapsulation Technology QCOB Available


Module Parameter LED Type Non-NS LED 1515/1817 NS Copper LED 1515 NS GOLD LED 1515
Pixel pitch 2.0 mm
Module Resolution (W×H Pixel) 160×80
Module Dimension (mm) 320 (W)×160 (H)×15 (D)
Module Flatness (mm) ≤0.15
Pixel/m2 250,000
Servicing Front
Back Shell Plastic
Cabinet Size (W×H) 640×480×50/640×640×55, Die-cast Aluminum
Cabinet Weight (KG/m2) ≤35 KGs (Die-cast Aluminum)
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 500-800
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 40
Electrical Parameter Max Power Consumption (W/m2) ≤650
Average Power Consumption (W/m2) ≤216
Input Power Voltage AC110-220V± 15%, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive (common anode)
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – 60
Storage Temp (°C) -20 – 60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-90%
Encapsulation Technology QCOB Available


Module Parameter LED Type Non-NS LED 2121 NS Copper LED 2121 NS GOLD LED 2121
Pixel pitch 2.5 mm
Module Resolution (W×H Pixel) 128×64
Module Dimension (mm) 320 (W)×160 (H)×15 (D)
Module Flatness (mm) ≤0.15
Pixel/m2 160,000
Servicing Front
Back Shell Plastic
Cabinet Size (W×H) 640×480×50/640×640×55, Die-cast Aluminum
Cabinet Weight (KG/m2) ≤35 KGs (Die-cast Aluminum)
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 500-800
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 32/64
Electrical Parameter Max Power Consumption (W/m2) ≤650
Average Power Consumption (W/m2) ≤216
Input Power Voltage AC110-220V± 15%, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive (common anode)
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – 60
Storage Temp (°C) -20 – 60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-90%
Encapsulation Technology QCOB Available


Module Parameter LED Type Non-NS LED 2121 NS Copper LED 2121 NS GOLD LED 2121
Pixel pitch 3.076 mm
Module Resolution (W×H Pixel) 104×52
Module Dimension (mm) 320 (W)×160 (H)×15 (D)
Module Flatness (mm) ≤0.15
Pixel/m2 105, 625
Servicing Front
Back Shell Plastic
Cabinet Size (W×H) 640×480×50/640×640×55, Die-cast Aluminum
Cabinet Weight (KG/m2) ≤35 KGs (Die-cast Aluminum)
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 500-800
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 26
Electrical Parameter Max Power Consumption (W/m2) ≤650
Average Power Consumption (W/m2) ≤216
Input Power Voltage AC110-220V± 15%, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive (common anode)
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – 60
Storage Temp (°C) -20 – 60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-90%
Encapsulation Technology QCOB Available
