Koala SERIES
In the realm of visual display technology, the Koala Series stands out as a revolutionary advancement, pushing the envelope of visual performance with cutting-edge features. Its advanced features, such as ultra-high refresh rates, versatile aspect ratios, and robust protection against environmental factors, make it an ideal choice for everything from high-traffic digital signage to sophisticated 3D displays. Designed to meet the demands of a diverse range of applications, the Koala Series offers unparalleled versatility, precision, and durability. Here's an in-depth look at what makes the Koala Series a game-changer in the industry.
240×540 mm
480×270 mm
480×540 mm
Redefining KOALA with Display Excellence for Exceptional Displays.
Features
Aspect Ratios- Tailoring Visuals to Your Needs:
- 16:9: The standard widescreen format, perfect for a variety of media applications, including video presentations and digital signage.
- 8:9: A more specialized format that offers a nearly square aspect ratio, ideal for applications requiring a balanced display area, such as interactive kiosks.
- 4:9: Provides a taller display, suited for vertical applications and narrow spaces, enhancing versatility in design and functionality.
QCOB Process:
- Epoxy Resin Encapsulation: This technology involves encapsulating LEDs in epoxy resin, which enhances their resilience against environmental factors such as moisture, dust, and mechanical impact. This encapsulation helps prolong the lifespan and reliability of the display.
- New Optical Heat-Conducting Material: Utilizes advanced materials to improve thermal management, ensuring that the LEDs operate efficiently and remain stable under high loads, thus reducing the risk of overheating and performance degradation.
- Enhanced PCBA Strength: The Printed Circuit Board Assembly (PCBA) is reinforced to handle operational stress, providing better support for electronic components and ensuring long-term reliability.
- Surface Light Source Display: This feature enhances brightness and uniformity, providing a clearer and more vivid visual experience with consistent light distribution across the screen.
Automotive-Grade Connectors– Precision and Reliability:
- Reduced Splicing Gaps: Precision engineering minimizes gaps in electrical connections, which improves signal integrity and reduces the likelihood of display errors or failures.
- Improved Conductivity: High-quality connectors ensure stable and efficient electrical transmission, enhancing the overall performance and reliability of the display system.
- Increased Module Flatness: The connectors contribute to a smoother display surface, minimizing visual distortions and ensuring a seamless viewing experience.
- Higher Efficiency: Optimizes the performance of the display modules, contributing to lower power consumption and better overall system efficiency.
Flatness Adjustment – Precision Perfected:
- Z Direction ±125μm: Allows for fine-tuning of the display’s surface in the vertical direction, compensating for any manufacturing variances or installation misalignments.
- XY Direction ±175μm: Provides adjustment in the horizontal plane, ensuring that the display surface remains perfectly flat and aligned for optimal visual performance.
Ultra High Refresh Rate – Unmatched Smoothness and Clarity:
960Hz-7680Hz: A high refresh rate reduces motion blur and flicker, ensuring smooth and stable visuals even during fast-moving scenes. This is crucial for applications such as live events, sports broadcasts, and dynamic content where high visual clarity is required.
3D Display Support– Immersive Visual Experience:
Adjustable Settings: Supports multiple refresh rates (30/50/60/90/120/240Hz) to accommodate various types of 3D content and viewer preferences, enhancing the flexibility of the display for different applications.
Nano Optical Coating – Superior Protection and Longevity:
- Waterproof: Protects the display from damage caused by water exposure, making it suitable for outdoor or high-humidity environments.
- Dust-Proof: Prevents dust and debris from affecting the display’s performance, ensuring consistent operation and longevity.
- Anti-Salt Spray: Provides resistance to corrosive salt spray, which is particularly important in coastal or industrial areas.
- High-Temperature Resistant: Ensures reliable performance in extreme temperatures, whether high or low, expanding the range of possible installation environments.
Durable Cabinet Design – Built to Last:
- Die-Cast Aluminum-Magnesium Alloy: Combines the strength of aluminum with the lightweight properties of magnesium, resulting in a robust yet lightweight cabinet that can withstand physical stress while remaining easy to handle.
- Anti-Radiation: Protects against electromagnetic interference, ensuring the display operates reliably in environments with potential radio frequency interference.
- Impact-Resistant: Designed to resist physical impacts, reducing the risk of damage from accidental collisions or harsh handling.
- Corrosion-Resistant: Prevents deterioration from environmental factors, enhancing the display’s longevity and maintaining its appearance over time.
- Silent Operation: Engineered to minimize operational noise, contributing to a quieter environment, which is particularly beneficial in settings such as meeting rooms or performance venues.
- Dust-Proof: Further ensures that dust and particles do not compromise the internal components, maintaining consistent performance.
Front Maintenance – Easy Access and Convenience:
Easy Access: Enables quick and straightforward maintenance of critical components such as modules, power units, and system cards without the need to dismantle the entire display setup. This minimizes downtime and operational disruptions.
Efficient Assembly – Quick and Reliable Setup:
- Interlocking Structure: The modular design allows for easy and secure assembly, ensuring that each component fits together precisely and securely.
- Module Replacement <2 minutes: Facilitates rapid replacement of faulty or damaged modules, reducing maintenance time and keeping the display operational.
Power Consumption – Efficient and Cost-Effective:
- Max ≤650 W/m²: Indicates the maximum power usage under peak conditions, allowing for planning in terms of power supply requirements.
- Avg ≤250 W/m²: Represents the average power consumption, highlighting the display’s efficiency and potential cost savings in terms of energy use.
Specs

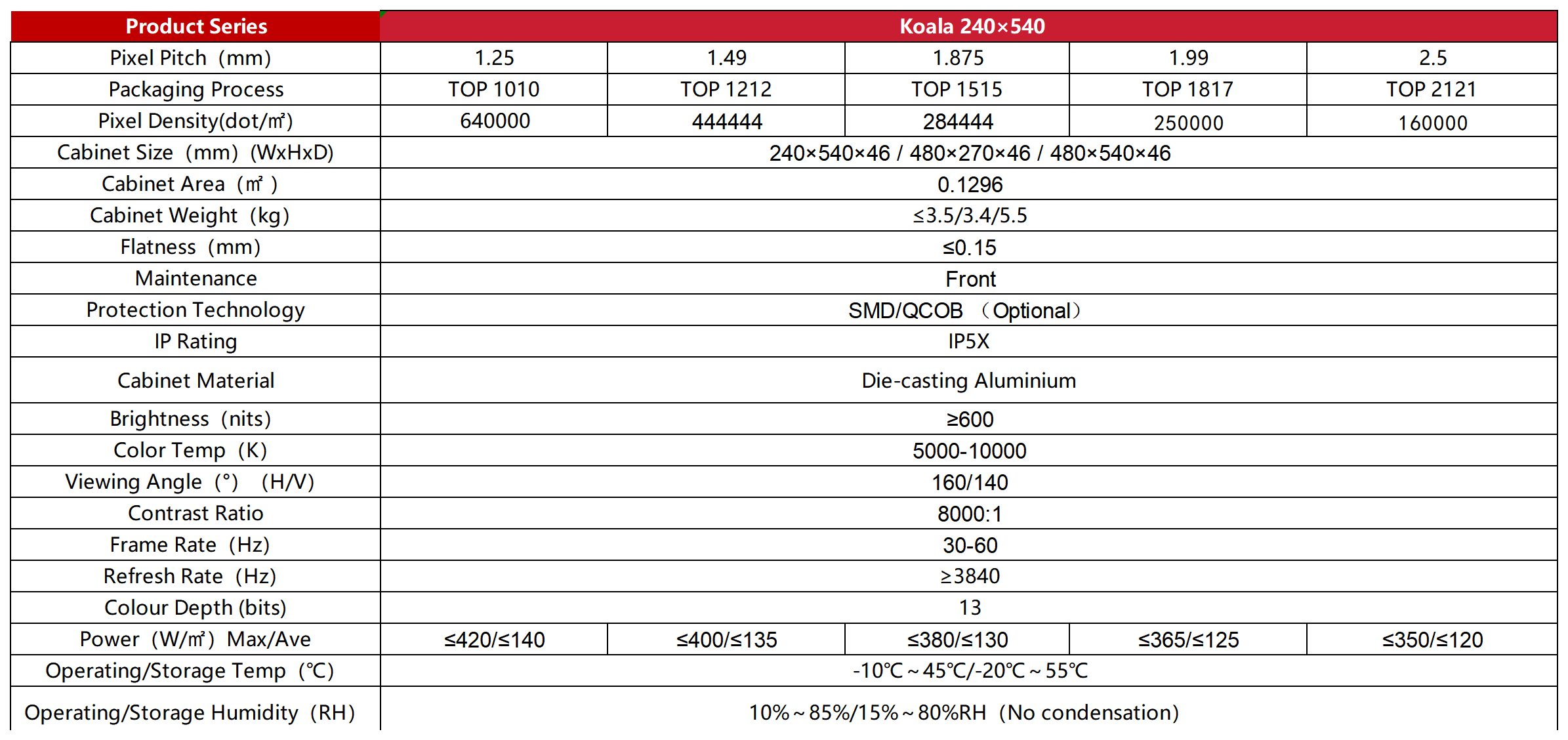

| PARAMETERS | SPECIFICATIONS | KOALA P1.25mm | KOALA P1.49mm | KOALA P1.875mm | KOALA P2.0mm | KOALA P2.5mm |
| Model | LED Full Color Display | KL12AA52 | KL14AA54 | KL18AA52 | KL19AC82 | KL25AA56 |
|
Module Parameter
|
LED Type | TOP 1010 | TOP 1212 | TOP 1515 | TOP 1817 | TOP 2121 |
| Pixel Pitch (mm) | 1.25 | 1.49 | 1.875 | 1.99 | 2.5 | |
| Module Resolution (W*H) | 192*216 | 160*180 | 128*144 | 120*135 | 96*108 | |
| Module Dimension (W*H,mm) | 240*270 | 240*270 | 240*270 | 240*270 | 240*270 | |
| Cabinet Resolution(W*H,mm) | 384*432 | 320*360 | 256*288 | 240*270 | 192*216 | |
| Cabinet Size(W*H*D,mm) | 240*540*54 | 240*540*54 | 240*540*54 | 240*540*54 | 240*540*54 | |
| Back shell | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | |
| Weight (KG/Cabinet) | ≤3.5 KGS | ≤3.5 KGS | ≤3.5 KGS | ≤3.5 KGS | ≤3.5 KGS | |
| IP Rating | IP3X | IP3X | IP3X | IP3X | IP3X | |
|
Optical Parameter
|
Brightness (nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Viewing Angle(H/V,°) | 160 | 160 | 160 | 160 | 160 | |
| Brightness/Colour Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | |
| Scan Rate | 48 | 48 | 48 | 40 | 32 | |
|
Electrical Parameter
|
Max Power Consumption (W/㎡) | ≤650 | ≤650 | ≤650 | ≤650 | ≤650 |
| Average Power Consumption (W/㎡) | ≤220 | ≤220 | ≤220 | ≤220 | ≤220 | |
| Input Power Voltage | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | |
|
Processing Parameter
|
Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Color Depth (Bits) | 14 | 14 | 14 | 14 | 14 | |
|
Operational Parameter
|
Operating temperature (°C) | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 |
| Operating Humidity (RH) | 10-90% | 10-90% | 10-90% | 10-90% | 10-90% |
| PARAMETERS | SPECIFICATIONS | KOALA P1.25mm | KOALA P1.49mm | KOALA P1.875mm | KOALA P2.0mm | KOALA P2.5mm |
| Model | LED Full Color Display | KL12AC52 | KL14AC52 | KL18AA52 | KL19AB82 | KL25AB56 |
|
Module Parameter
|
LED Type | TOP 1010 | TOP 1212 | TOP 1515 | TOP 1817 | TOP 2121 |
| Pixel Pitch (mm) | 1.25 | 1.49 | 1.875 | 1.99 | 2.5 | |
| Module Resolution (W*H) | 192*216 | 160*180 | 128*144 | 120*135 | 96*108 | |
| Module Dimension (W*H,mm) | 240*270 | 240*270 | 240*270 | 240*270 | 240*270 | |
| Cabinet Resolution(W*H,mm) | 384*216 | 320*180 | 256*144 | 240*270 | 192*108 | |
| Cabinet Size(W*H*D,mm) | 480*270*54 | 480*270*54 | 480*270*54 | 480*270*54 | 480*270*54 | |
| Back shell | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | |
| Weight (KG/Cabinet) | ≤3.4 KGS | ≤3.4 KGS | ≤3.4 KGS | ≤3.4 KGS | ≤3.4 KGS | |
| IP Rating | IP3X | IP3X | IP3X | IP3X | IP3X | |
|
Optical Parameter
|
Brightness (nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Viewing Angle(H/V,°) | 160 | 160 | 160 | 160 | 160 | |
| Brightness/Colour Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | |
| Scan Rate | 48 | 48 | 48 | 40 | 32 | |
|
Electrical Parameter
|
Max Power Consumption (W/㎡) | ≤650 | ≤650 | ≤650 | ≤650 | ≤650 |
| Average Power Consumption (W/㎡) | ≤220 | ≤220 | ≤220 | ≤220 | ≤220 | |
| Input Power Voltage | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | |
|
Processing Parameter
|
Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Color Depth (Bits) | 14 | 14 | 14 | 14 | 14 | |
|
Operational Parameter
|
Operating temperature (°C) | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 |
| Operating Humidity (RH) | 10-90% | 10-90% | 10-90% | 10-90% | 10-90% |
| PARAMETERS | SPECIFICATIONS | KOALA P1.25mm | KOALA P1.49mm | KOALA P1.87mm | KOALA P2.0mm | KOALA P2.5mm |
| Model | LED Full Color Display | KL12AA53 | KL14AA54 | KL18AA52 | KL20AA52 | KL25AA1S |
|
Module Parameter
|
LED Type | TOP 1010 | TOP 1212 | TOP 1515 | TOP 1817 | TOP 2121 |
| Pixel Pitch (mm) | 1.25 | 1.49 | 1.875 | 1.99 | 2.5 | |
| Module Resolution (W*H) | 192*216 | 160*180 | 128*144 | 120*135 | 96*108 | |
| Module Dimension (W*H,mm) | 240*270 | 240*270 | 240*270 | 240*270 | 240*270 | |
| Cabinet Resolution(W*H,mm) | 384*432 | 320*360 | 256*288 | 240*270 | 192*216 | |
| Cabinet Size(W*H*D,mm) | 480*540*54 | 480*540*54 | 480*540*54 | 480*540*54 | 480*540*54 | |
| Back shell | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | |
| Weight (KG/Cabinet) | ≤7 KGS | ≤7 KGS | ≤7 KGS | ≤7 KGS | ≤7 KGS | |
| IP Rating | IP3X | IP3X | IP3X | IP3X | IP3X | |
|
Optical Parameter
|
Brightness (nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Viewing Angle(H/V,°) | 160 | 160 | 160 | 160 | 160 | |
| Brightness/Colour Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | |
| Scan Rate | 48 | 45 | 48 | 40 | 32 | |
|
Electrical Parameter
|
Max Power Consumption (W/㎡) | ≤650 | ≤650 | ≤650 | ≤650 | ≤650 |
| Average Power Consumption (W/㎡) | ≤220 | ≤220 | ≤220 | ≤220 | ≤220 | |
| Input Power Voltage | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | AC220V±15%, 50/60 (Hz) | |
|
Processing Parameter
|
Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Color Depth (Bits) | 14 | 14 | 14 | 14 | 14 | |
|
Operational Parameter
|
Operating temperature (°C) | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 |
| Operating Humidity (RH) | 10-90% | 10-90% | 10-90% | 10-90% | 10-90% |
