NT Series

Manufactured for the Retail, and B2B industry, NT Series Unifies your network infrastructure with its high-performance switches, delivering exceptional scalability and security.

New Layer
Home 9 Product 9 NT Series

Key Features

Image Hotspot Pointers
Your Image

Features

Features

High Refresh Rate

Features

Power and signal redundant

Features

Front and rear maintenance

Features

QCOB technology

Features

High Refresh Rate

Features

Power and signal redundant

Popup Image

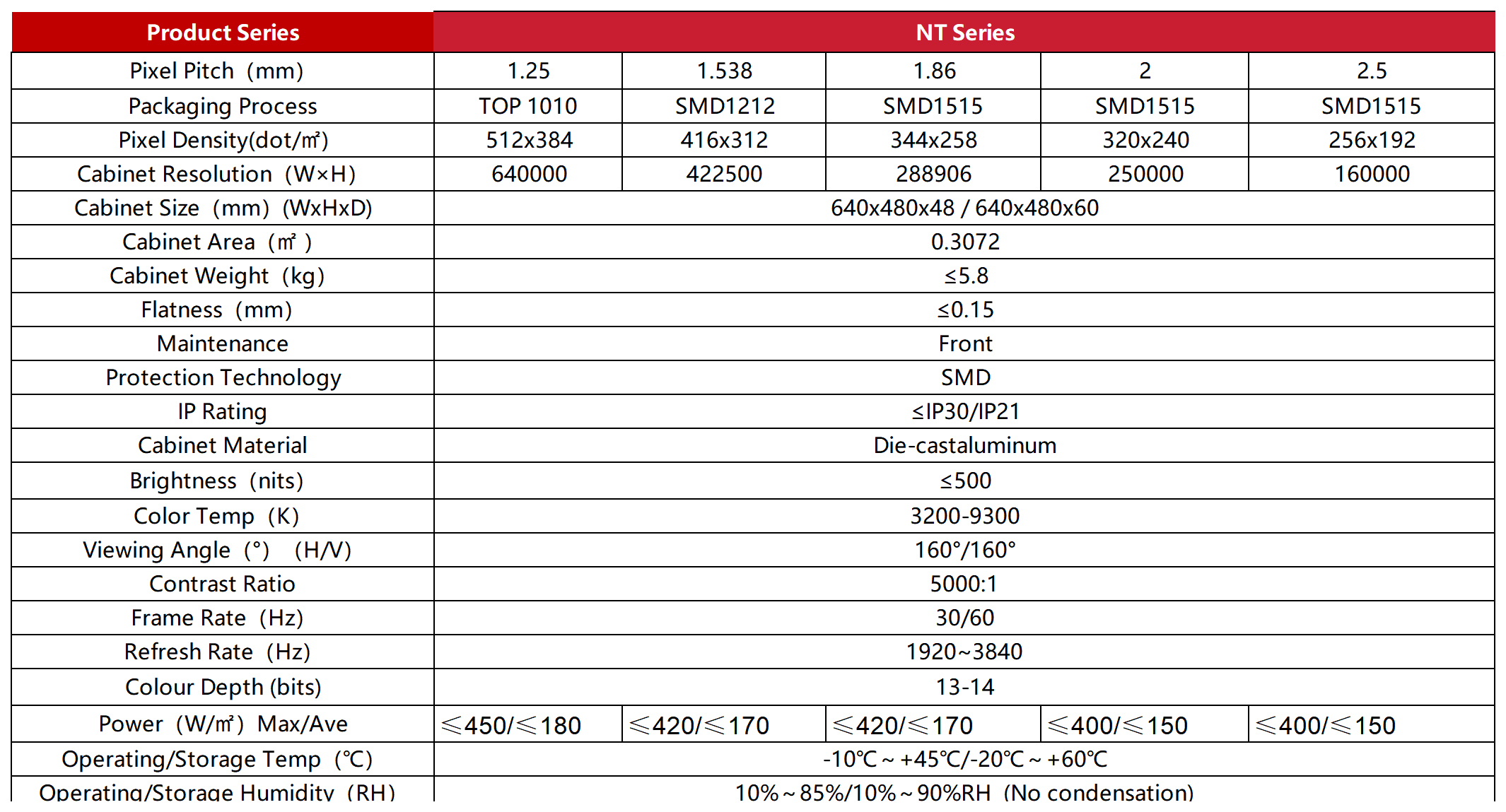

Specs

Module Parameter LED Type Top 1010
Pixel pitch 1.25 mm
Module Resolution (W×H Pixel) 256×128
Module Dimension (mm) 320×160
Pixel/m2 640,000
No. of Modules/Cabinet 2×3
Servicing Front/Rear
Cabinet Size (W×H×D) 640mm×480×49mm
Cabinet Area (m2) 0.3072
Cabinet Material Die-Cast Aluminum
Cabinet Resolution 512×384
Weight (KG) ≤7 KG
Optical Parameter Contrast Ratio 5000:1
Colour Temperature (K) 5000-1000 Adjustable
Brightness (nits) ≥600-800
Viewing Angle (Horizontal/Vertical) ≥160°/≥160°
Electrical Parameter Max Power Consumption (W/m2) ≤450 (Common Cathode)
Average Power Consumption (W/m2) ≤250
Input Power Voltage AC220V±15%
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) ≥3840 Hz
Colour Depth (bits) 16 bit
Operational Parameter Life Span (Hrs) 100,000
Operating/Storage Temp (°C) -10+45/-20+60
Operating/ Storage Humidity (RH) 10-90%/10-70%
IP Rating IP3X, IP5X with QCOB


Module Parameter LED Type Top 1212
Pixel pitch 1.53 mm
Module Resolution (W×H Pixel) 208×104
Module Dimension (mm) 320×160
Pixel/m2 422,500
No. of Modules/Cabinet 2×3
Servicing Front/Rear
Cabinet Size (W×H×D) 640mm×480×49mm
Cabinet Area (m2) 0.3072
Cabinet Material Die-Cast Aluminum
Cabinet Resolution 416×312
Weight (KG) ≤7 KG
Optical Parameter Contrast Ratio 5000:1
Colour Temperature (K) 5000-1000 Adjustable
Brightness (nits) ≥600-800
Viewing Angle (Horizontal/Vertical) ≥160°/≥160°
Electrical Parameter Max Power Consumption (W/m2) ≤450 (Common Cathode)
Average Power Consumption (W/m2) ≤250
Input Power Voltage AC220V±15%
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) ≥3840 Hz
Colour Depth (bits) 16 bit
Operational Parameter Life Span (Hrs) 100,000
Operating/Storage Temp (°C) -10+45/-20+60
Operating/ Storage Humidity (RH) 10-90%/10-70%
IP Rating IP3X, IP5X with QCOB


Module Parameter LED Type Top 1515
Pixel pitch 1.86 mm
Module Resolution (W×H Pixel) 172×86
Module Dimension (mm) 320×160
Pixel/m2 288,906
No. of Modules/Cabinet 2×3
Servicing Front/Rear
Cabinet Size (W×H×D) 640mm×480×49mm
Cabinet Area (m2) 0.3072
Cabinet Material Die-Cast Aluminum
Cabinet Resolution 344×258
Weight (KG) ≤7 KG
Optical Parameter Contrast Ratio 5000:1
Colour Temperature (K) 5000-1000 Adjustable
Brightness (nits) ≥600-800
Viewing Angle (Horizontal/Vertical) ≥160°/≥160°
Electrical Parameter Max Power Consumption (W/m2) ≤450 (Common Cathode)
Average Power Consumption (W/m2) ≤250
Input Power Voltage AC220V±15%
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) ≥3840 Hz
Colour Depth (bits) 16 bit
Operational Parameter Life Span (Hrs) 100,000
Operating/Storage Temp (°C) -10+45/-20+60
Operating/ Storage Humidity (RH) 10-90%/10-70%
IP Rating IP3X, IP5X with QCOB


Module Parameter LED Type Top 1817
Pixel pitch 1.99 mm
Module Resolution (W×H Pixel) 160×80
Module Dimension (mm) 320×160
Pixel/m2 250,000
No. of Modules/Cabinet 2×3
Servicing Front/Rear
Cabinet Size (W×H×D) 640mm×480×49mm
Cabinet Area (m2) 0.3072
Cabinet Material Die-Cast Aluminum
Cabinet Resolution 320×240
Weight (KG) ≤7 KG
Optical Parameter Contrast Ratio 5000:1
Colour Temperature (K) 5000-1000 Adjustable
Brightness (nits) ≥600-800
Viewing Angle (Horizontal/Vertical) ≥160°/≥160°
Electrical Parameter Max Power Consumption (W/m2) ≤450 (Common Cathode)
Average Power Consumption (W/m2) ≤250
Input Power Voltage AC220V±15%
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) ≥3840 Hz
Colour Depth (bits) 16 bit
Operational Parameter Life Span (Hrs) 100,000
Operating/Storage Temp (°C) -10+45/-20+60
Operating/ Storage Humidity (RH) 10-90%/10-70%
IP Rating IP3X, IP5X with QCOB


Module Parameter LED Type Top 2121
Pixel pitch 2.5 mm
Module Resolution (W×H Pixel) 128×64
Module Dimension (mm) 320×160
Pixel/m2 160,000
No. of Modules/Cabinet 2×3
Servicing Front/Rear
Cabinet Size (W×H×D) 640mm×480×49mm
Cabinet Area (m2) 0.3072
Cabinet Material Die-Cast Aluminum
Cabinet Resolution 256×192
Weight (KG) ≤7 KG
Optical Parameter Contrast Ratio 5000:1
Colour Temperature (K) 5000-1000 Adjustable
Brightness (nits) ≥600-800
Viewing Angle (Horizontal/Vertical) ≥160°/≥160°
Electrical Parameter Max Power Consumption (W/m2) ≤450 (Common Cathode)
Average Power Consumption (W/m2) ≤250
Input Power Voltage AC220V±15%
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) ≥3840 Hz
Colour Depth (bits) 16 bit
Operational Parameter Life Span (Hrs) 100,000
Operating/Storage Temp (°C) -10+45/-20+60
Operating/ Storage Humidity (RH) 10-90%/10-70%
IP Rating IP3X, IP5X with QCOB
